The Critical Role of Precision in CRGO Core Cutting: Boosting Transformer Performance

In the transformer manufacturing industry, the quality of the core is the heart of the machine’s performance. Among the materials used, Cold Rolled Grain Oriented (CRGO) steel is prized for its magnetic properties. However, these properties are extremely sensitive to mechanical stress. If you are using outdated cutting methods or poorly maintained machinery, you aren’t just cutting metal, you are potentially damaging the magnetic flux path, leading to higher energy losses in your final transformer.

Why Precision Cutting Matters for CRGO

CRGO steel is designed to have a specific grain orientation to facilitate easy magnetization. When you cut this material, improper force or a dull blade can cause:

1. Burr Formation: Burrs create “short circuits” between laminations, significantly increasing eddy current losses.
2. Mechanical Stress: Excessive pressure during cutting can disrupt the grain structure, leading to increased hysteresis loss.
3. Dimension Inaccuracy: Inaccurate cuts lead to poor core stacking, creating air gaps that reduce the overall magnetic efficiency of the transformer.

3 Ways to Ensure High-Efficiency Core Cutting

1. Prioritize Blade Sharpness and Alignment

Even the best CRGO Core Cutting Machine will fail to deliver quality results if the shear blades are compromised. Precision cutting requires a razor-sharp edge to slice through the silicon steel without creating heat or burrs. We recommend a strict schedule for sharpening your Shear Blades based on the total tonnage processed, rather than waiting for visible damage.

2. Control the Cutting Speed and Pressure

CRGO is a delicate material. High-speed, high-impact cutting can “work-harden” the edges, damaging the magnetic properties. Ensure your machine settings are calibrated specifically for the thickness and grade of the CRGO steel you are processing. Modern machines allow for calibrated stroke control to ensure clean, stress-free edges every time.

3. Invest in Specialized Machinery

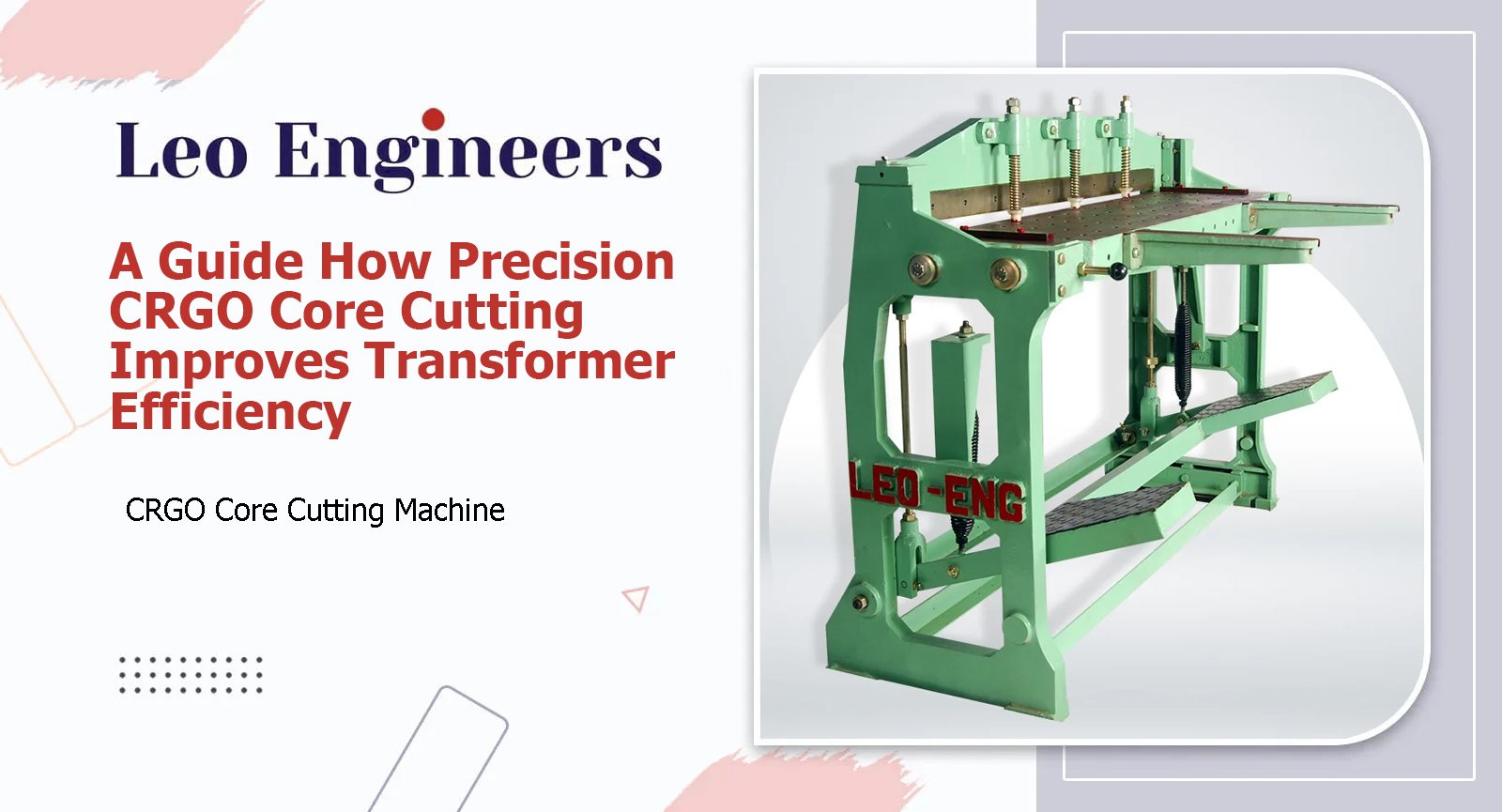

General-purpose shearing machines are often not calibrated for the high precision required by the electrical industry. A dedicated CRGO Core Cutting Machine is designed to minimize vibration and ensure that the angle of the cut remains consistent across the entire width of the sheet, preserving the grain orientation of the steel.

Improving Your Production Line with Leo Engineers

At Leo Engineers, we understand that transformer manufacturers cannot afford to compromise on quality. Our cutting solutions are engineered to ensure minimal burr formation and maximum material integrity. Whether you are looking to upgrade your current facility or need advice on fine-tuning your existing setup for better efficiency, our engineering team is available for a consultation.
