The Art of the Perfect Seal: Troubleshooting Common HDPE Pipe Fusion Failures

For contractors and utility engineers, the integrity of a pipeline is only as strong as its weakest joint. HDPE (High-Density Polyethylene) piping has become the industry standard for its durability and flexibility, but these benefits are only realized when the butt fusion process is executed with precision. If you are dealing with inconsistent joints or site delays, it is often due to minor errors in machine calibration or operator technique. Here is how to ensure every joint you create is leak-proof.

1. Temperature Control is Non-Negotiable

HDPE requires a specific heat range to reach the proper melt state. If the heater plate temperature is too low, the molecules won’t fuse; if it’s too high, you degrade the material. Always verify the temperature with an external thermometer before each weld, rather than relying solely on the internal gauge.

2. The Importance of Proper Facing

A joint will fail if the pipe ends are not perfectly perpendicular or if there is debris between them. The facing process is not just about cleaning; it is about creating a perfectly flat mating surface. If you see gaps during the trial closure, re-face the pipe immediately. Skipping this step is the most common cause of joint leakage.

3. Monitoring Bead Size

The “bead” (the roll of material formed when the pipes are pushed together) is your visual indicator of a successful weld.

• Too small: The pressure was insufficient, or the heating time was too short.
• Too large: You applied too much force, potentially forcing the molten material out of the joint area rather than fusing it together.
• Consistency: The bead should be uniform around the entire circumference of the pipe.

4. Cooling Time Management

The biggest mistake on a job site is moving or handling the pipe before the joint has fully cooled. Rapid cooling (like using water to speed up the process) creates internal stress in the material, which leads to long-term cracking. Always follow the manufacturer’s cooling duration charts. Patience at this stage prevents failures later.

5. Using the Right Equipment

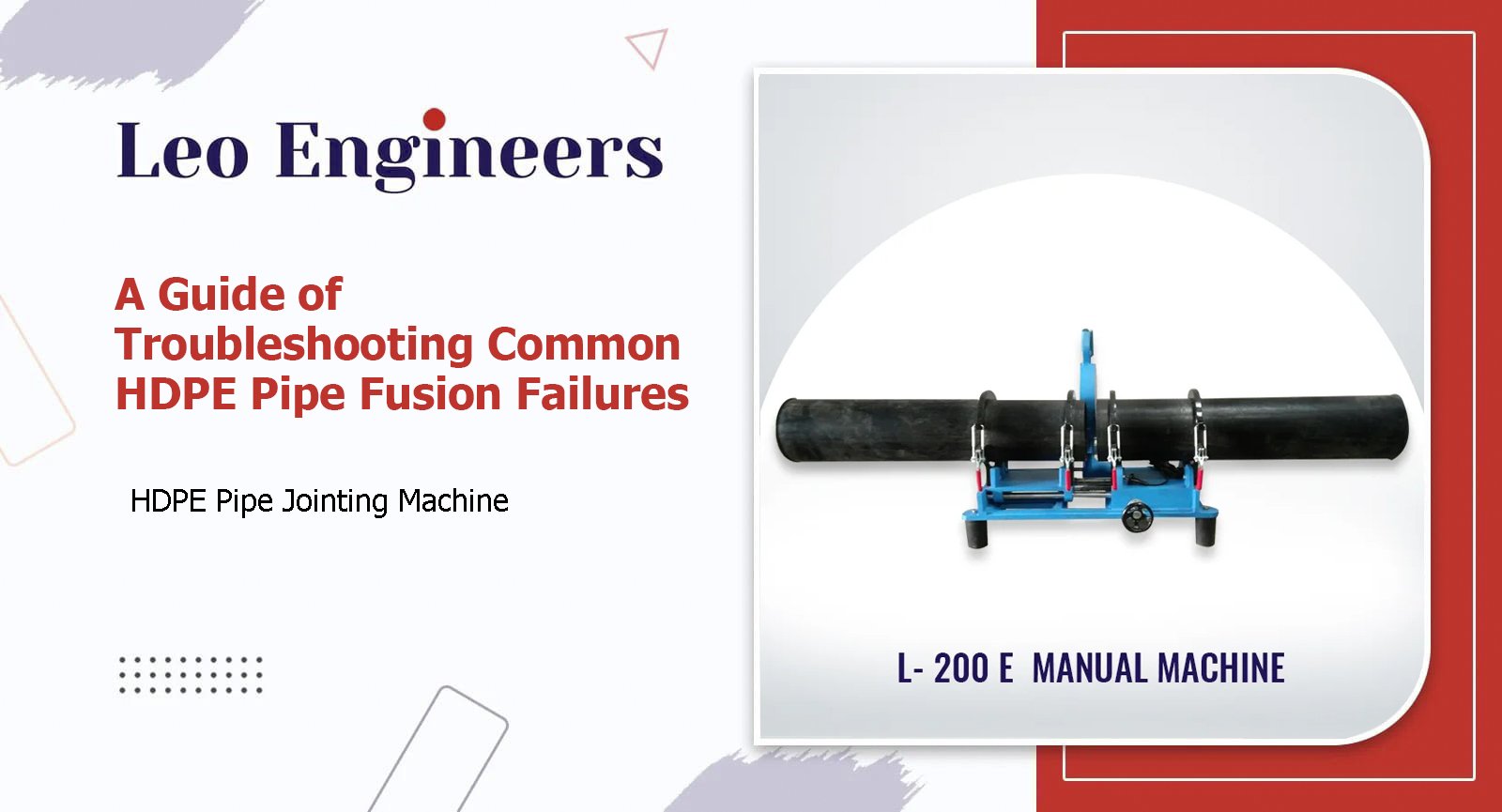

Manual or improper equipment can make it impossible to hold the required pressure consistently throughout the cooling phase. Utilizing a precision-engineered HDPE Pipe Jointing Machine allows you to maintain exact pressure and alignment, which is the only way to ensure the long-term reliability of your pipelines.
