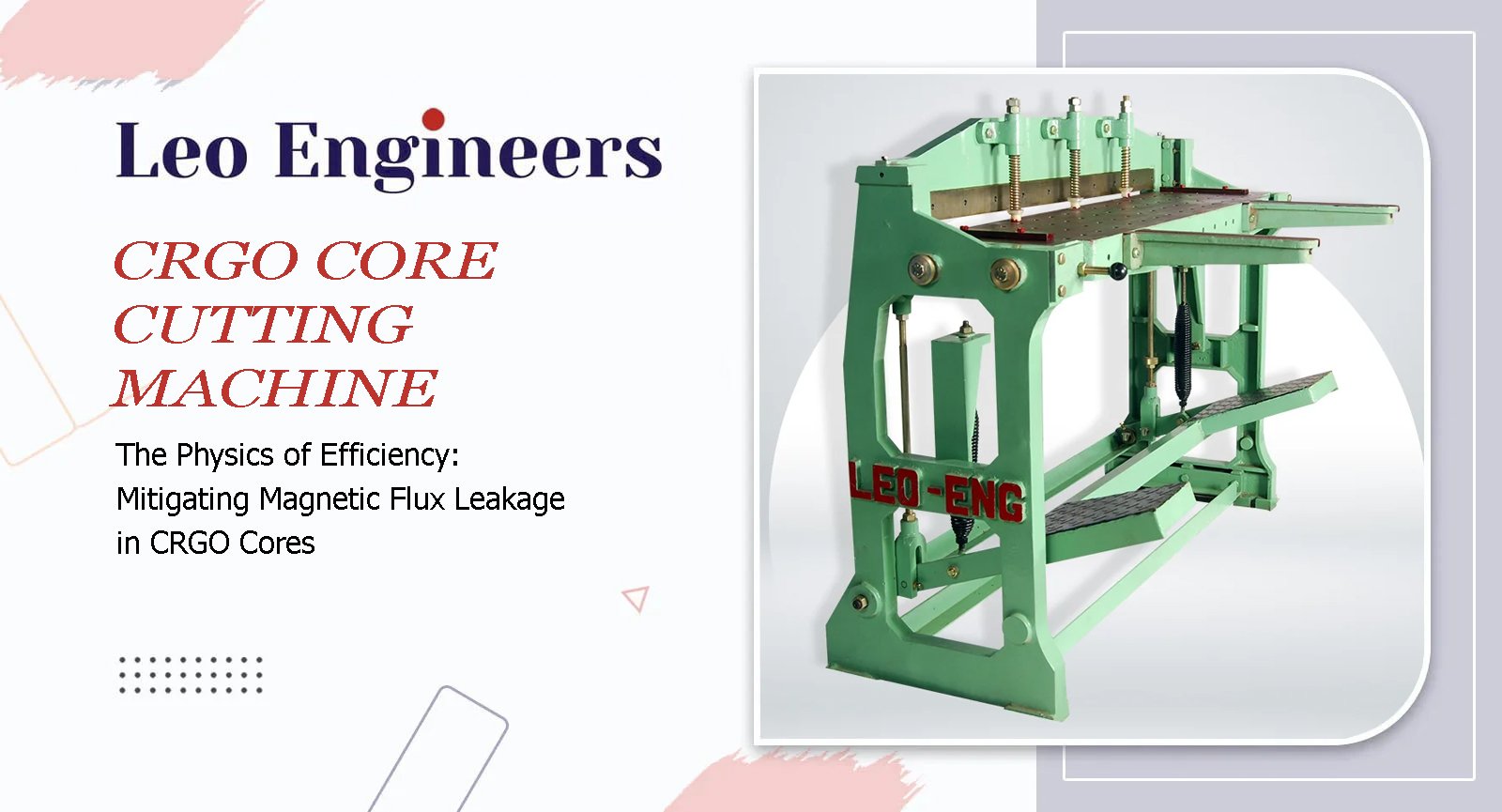

The Physics of Efficiency: Mitigating Magnetic Flux Leakage in CRGO Cores

In the transformer industry, efficiency is measured in fractions of a percentage. When a transformer underperforms, the culprit is often “magnetic flux leakage”—energy that escapes the core instead of being converted. As a manufacturer of CRGO Core Cutting Machines, we understand that the quality of your core laminations is the first line of defense against these losses.

What Causes Flux Leakage in Cores?

Flux leakage occurs when the magnetic path is disrupted. In CRGO (Cold Rolled Grain Oriented) steel, the material is specifically engineered to conduct magnetic flux in one direction. When that grain structure is compromised, the flux “leaks” out of the core. The most common causes are:

• Inaccurate Cutting Angles: If laminations are not cut at the precise required angle, the grain orientation is misaligned during stacking.
• Burr-Induced Shorting: Jagged edges from poor-quality cutting blades can create conductive paths between laminations, causing eddy currents.
• Mechanical Stress: Excessive clamping pressure during the cutting process can permanently alter the magnetic properties of the steel.

3 Steps to Superior Core Alignment

1. Precision Tooling Calibration

Your machine must be calibrated to handle the specific thickness of your CRGO stock. Even a deviation of a fraction of a millimeter in your Shear Blades can result in a burr that ruins the entire stack efficiency. Perform a “test strip” cut on every new batch of steel to verify edge quality.

2. Burr-Free Shearing Techniques

When selecting a CRGO Core Cutting Machine, look for features that allow for controlled hydraulic or pneumatic pressure. High-impact shearing creates more burrs than controlled-speed shearing. Ensuring a clean, vertical cut is the most effective way to prevent inter-lamination shorting.

3. Optimized Stacking Geometry

The precision of your cut dictates the precision of your stack. If your cuts are inconsistent, your stack will have gaps or uneven edges, forcing the magnetic flux to jump through air gaps—which is where the majority of leakage occurs. A perfectly square, consistent cut allows for tight stacking and maximum flux containment.

Elevate Your Manufacturing Standards

Precision isn’t just about tolerances; it’s about the bottom-line performance of every transformer you build. At Leo Engineers, our core cutting solutions are designed to maintain the integrity of the CRGO grain structure, ensuring your transformers operate at peak efficiency.
